Savings & Backup All Together

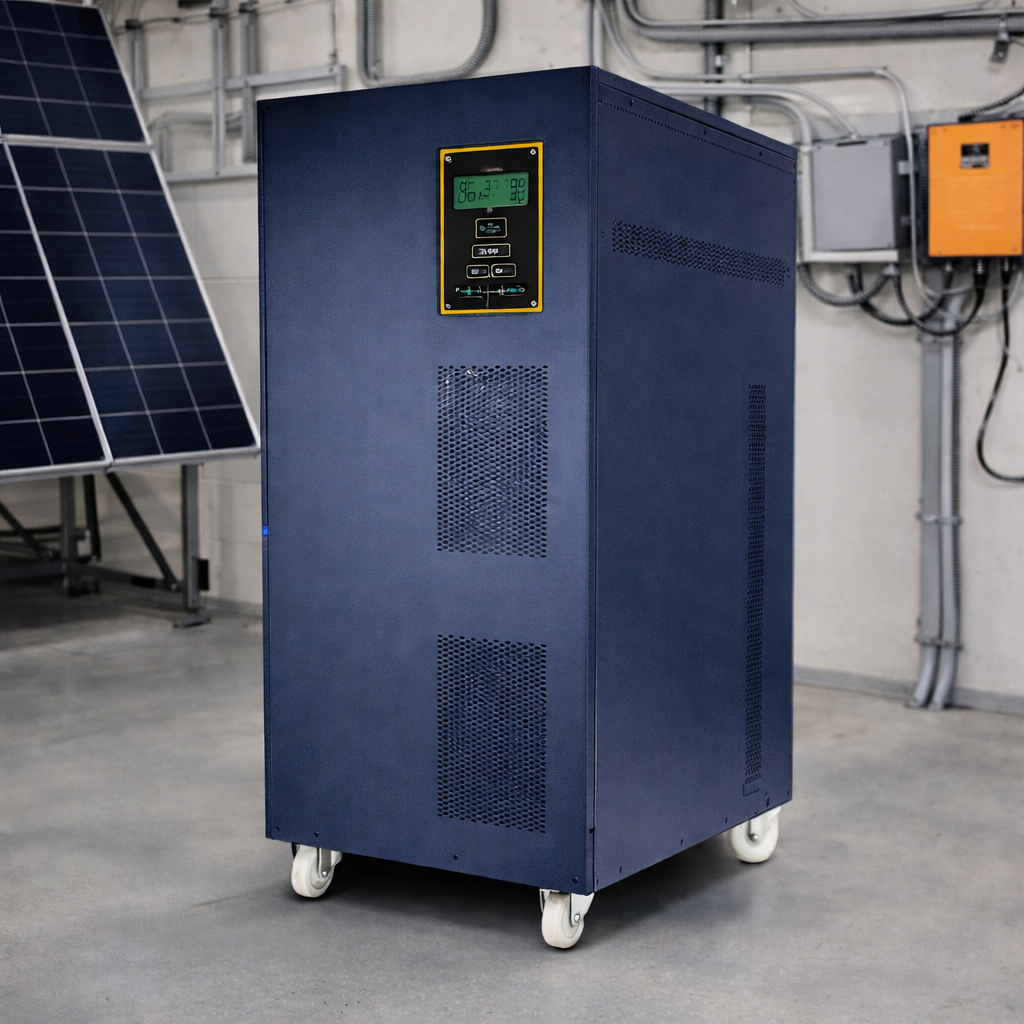

3 Phase Solar Hybrid TX is designed with advanced technology. It adopts double transform high frequency and high-performance digital control technique (DSP), with perfect protection, super network management function, reasonable man-machine interface, and a series of precision designs to meet high-reliability requirements. Experience a power that integrates reliability, safety, and maintainability characteristics.
Store electricity in battery for backup as well as export excess electricity to grid
Allows users to choose amoung reduced grid dependency & energy savings, enhanced backup and autonomy from grid and export access power when required
Disconnects the inverter from grid during power failure preventing any electrical shock to the linemen at work
In case of grid unavailability, automatically switches over to battery supply, continuing to operate independently from grid
Multiple modes of connectivity for remote monitoring enables keeping track of solar generation and proactive maintenance
| System Rating (kVA/KW) | 10.5KVA / 8.4kW |
|---|---|
| Open circuit voltage | 400V |
| Maximum PV Power | 10.5kW |
| Charge Controller | MPPT Charge Controller |
| MPPT Voltage Range | 200 - 380 |
| Switching Element | IGBT |
| Type of Charger | MPPT |
| Charger Efficiency | >95% |
| GRID | |
| Input Supply | 415 VAC, 3 Phase, 4 wire (+15%, -15%) |
| Input Frequency | 50Hz ± 6% |
| BATTERY | |
| Battery Voltage | 120VDC |
| Grid charger type | Bi-Directional |
| Charging current from grid | 15A for 150Ah battery / 20A for 200Ah battery (up to inverter kVA capacity) |
| Battery Type | Lead Acid / SMF / Lithium ion* |
| INVERTER | |
| Switching Element | IGBT |
| Output wave form | Pure Sine Wave |
| Output Nominal Voltage | 415VAC ±2%, 3Ph |
| Output Frequency | 50Hz ±1% |
| Load Power Factor | 0.6 lag to 1 (within VA and kW rating) |
| Inverter Peak Efficiency | 90% |
| Vth with 100% linear load | Mains mode: Same as Grid inverter mode <3% |
| Galvanic isolation | Inbuilt isolation transformation inverter output |
| Overload conditions | 110% for 60 sec / 125% for 10 sec / 150% for 1 sec |
| PROTECTION | |
| Protection | Input Under and Over voltage, Input Under and Over Frequency, Output Overload, Output short circuit, Output over and Under Voltage, Over Temperature Array Reverse Polarity, Battery Over and Under voltage |
| Display Parameter, LED Indication and Alarm | |
| Display Parameter | Grid-Voltage, Current, Power; Output voltage, Current, Total Power, Load Percentage; Battery-voltage, current DC Power; Solar-Voltage, Current, Power; Statistics - KWH (Grid import, Grid Export, Inverter Battery IN and OUT, Solar); Event log (5 No's) / USB Storage (upto 1000 no's) |
| LED Indication | Grid ON/OFF, Grid Static switch ON/OFF, Inverter ON/OFF, Inverter static Switch ON/OFF, Load ON/OFF, Battery Charging and Discharging |
| Alarm | Audible alarm for fault conditions and warnings |
| CONFIGURATION | |
| Modes | 2 different priority modes selectable from display (Solar-Battery-Grid) & (Solar-Grid-Battery) |
| Parameter Setting | All main parameters can be set through LCD Display |
| Bypass | Manual bypass switch available for maintenance and service |
| ENCLOSURE | |
| Degree of protection | IP 20 |
| Cooling | Forced Air Cooling |
| Color | RAL 5013 Cobalt Blue |
| Dimensions (L×W×H) mm | 710 × 300 × 790 |
| Netweight (Approx in Kg's) | 130 |
| ENVIRONMENT | |
| Temperature Operating | 0-40° C |
| Max. Relative humidity @25° (non condensing) | Up to 95% |
| Max. Altitude above sea level without de-rating | Up to 1000 mtr |
| System Rating (kVA/KW) | 15kVA / 12kW | 20kVA / 16kW |
|---|---|---|
| Open circuit voltage | 400V | 500V |
| Maximum PV Power | 15kW | 20kW |
| Charge Controller | MPPT Charge Controller | |
| MPPT Voltage Range | 200 - 380 | 300 - 480 |
| Switching Element | IGBT | |
| Type of Charger | MPPT | |
| Charger Efficiency | >95% | |
| GRID | ||
| Input Supply | 415 VAC, 3 Phase, 4 wire (+15%, -15%) | |
| Input Frequency | 50Hz ± 6% | |
| BATTERY | ||
| Battery Voltage | 180VDC | 240VDC |
| Grid charger type | Bi-Directional | |
| Charging current from grid | 15A for 150Ah battery / 20A for 200Ah battery (up to inverter kVA capacity) | |
| Battery Type | Lead Acid / SMF / Lithium ion* | |
| INVERTER | ||
| Switching Element | IGBT | |
| Output wave form | Pure Sine Wave | |
| Output Nominal Voltage | 415VAC ±2%, 3Ph | |
| Output Frequency | 50Hz ±1% | |
| Load Power Factor | 0.6 lag to 1 (within VA and kW rating) | |
| Inverter Peak Efficiency | 90% | |
| Vth with 100% linear load | Mains mode: Same as Grid inverter mode <3% | |
| Galvanic isolation | Inbuilt isolation transformation inverter output | |
| Overload conditions | 110% for 60 sec / 125% for 10 sec / 150% for 1 sec | |
| PROTECTION | ||
| Protection | Input Under and Over voltage, Input Under and Over Frequency, Output Overload, Output short circuit, Output over and Under Voltage, Over Temperature Array Reverse Polarity, Battery Over and Under voltage | |
| DISPLAY PARAMETER, LED INDICATION AND ALARM | ||
| Display Parameter | Grid-Voltage, Current, Power; Output voltage, Current, Total Power, Load Percentage; Battery-voltage, current DC Power; Solar-Voltage, Current, Power; Statistics - KWH (Grid import, Grid Export, Inverter Battery IN and OUT, Solar); Event log (5 No's) / USB Storage (upto 1000 no's) | |
| LED Indication | Grid ON/OFF, Grid Static switch ON/OFF, Inverter ON/OFF, Inverter static Switch ON/OFF, Load ON/OFF, Battery Charging and Discharging | |
| Alarm | Audible alarm for fault conditions and warnings | |
| CONFIGURATION | ||
| Modes | 2 different priority modes selectable (Solar-Battery-Grid) & (Solar-Grid-Battery) | |
| Parameter Setting | All main parameters can be set through LCD Display | |
| Bypass | Manual bypass switch available for maintenance and service | |
| ENCLOSURE | ||
| Degree of protection | IP 20 | |
| Cooling | Forced Air Cooling | |
| Color | RAL 5013 Cobalt Blue | |
| Dimensions (L×W×H) mm | 770 × 400 × 880 | |
| Netweight (Approx in Kg's) | 154 | |
| ENVIRONMENT | ||
| Temperature Operating | 0-40° C | |
| Max. Relative humidity @25° (non condensing) | Up to 95% | |
| Max. Altitude above sea level without de-rating | Up to 1000 mtr | |
