Savings & Backup All Together

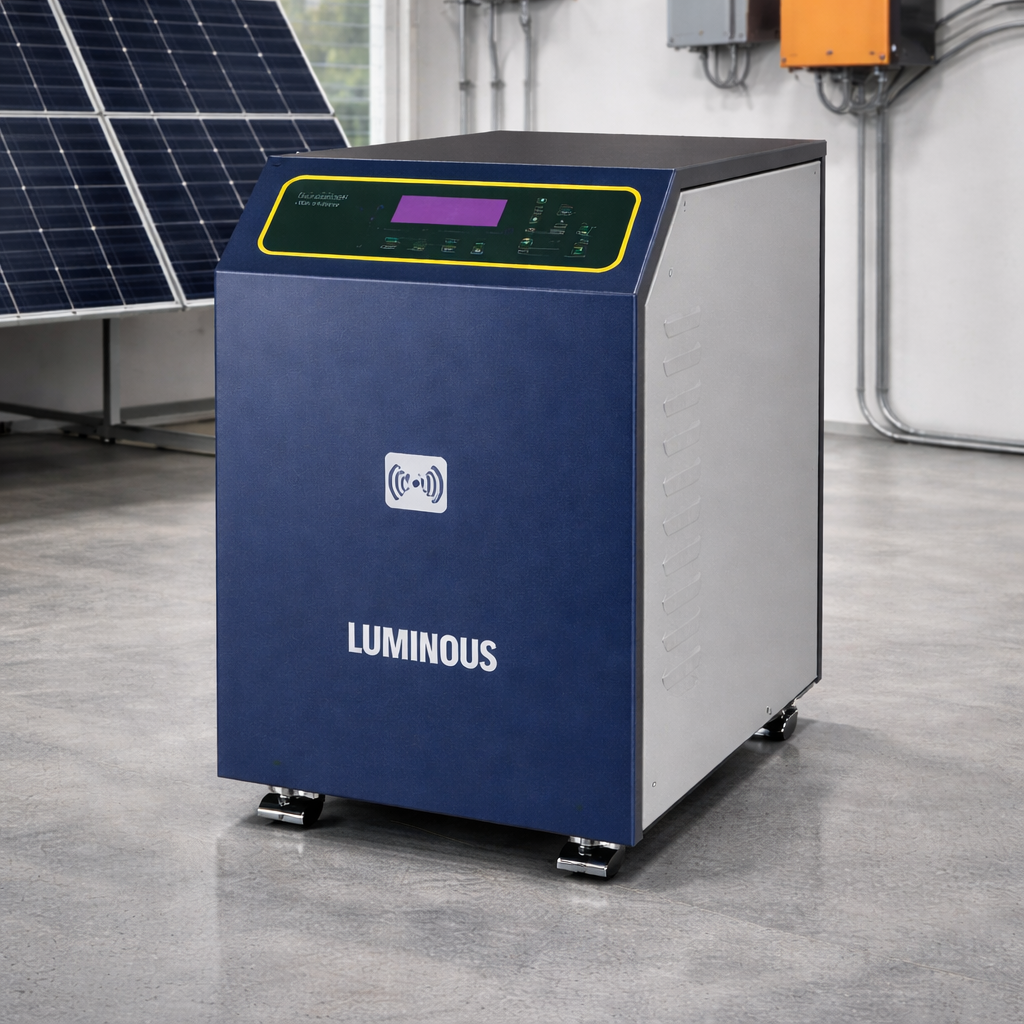

Hybrid Inverter range from Luminous is a combination of an on-grid inverter and off-grid inverter making it more versatile than other solar inverters helping in lowering your electricity bills and protecting from power outages. It can supply solar power to run your electrical appliances, store electricity in batteries required during power outages as well as export excess power generated to grid. Available in 3.75KVA & 5KVA.
Store electricity in battery for backup as well as export excess electricity to grid
Allows users to choose amoung reduced grid dependency & energy savings, enhanced backup and autonomy from grid and export access power when required
Disconnects the inverter from grid during power failure preventing any electrical shock to the linemen at work
In case of grid unavailability, automatically switches over to battery supply, continuing to operate independently from grid
Multiple modes of connectivity for remote monitoring enables keeping track of solar generation and proactive maintenance
| Solution | Panel Connection Combination (Series-Parallel) | Approx. Roof Top Area Required (Sq. ft.) | ||
|---|---|---|---|---|
| Hybrid Inverter | Solar Battery | PV Panel Watt | ||
| HYBRID TX 3.75KVA | 150Ah x 4 | 550Wp x 4 Nos. | 2 (S) 2 (P) | 120 |
| HYBRID TX 5KVA | 150Ah x 4 | 550Wp x 6 Nos. | 3 (S) 2 (P) | 240 |
| Model | HYBRID TX 3.75kVA | HYBRID TX 5kVA |
|---|---|---|
| Nominal Battery Voltage (Vdc) | 48V | |
| Output Waveform | Pure Sine Wave | |
| SOLAR PHOTOVOLTAIC INPUT | ||
| Type of Charger | MPPT | |
| Maximum PV Power (kW) | 3kW | 4kW |
| Input Voltage Range (Voc) | 65V – 165V | |
| Input Voltage Range (Vmp) | 65V – 130V | |
| Maximum I/P Current (Array) | 46A | 61A |
| Maximum MPPT Output Current (A) | 60A | 80A |
| Maximum Conversion Efficiency (%) | >95% | |
| GRID INPUT | ||
| Input Supply Phase | Single Phase | |
| Grid Voltage Range | 180V - 270V | |
| Nominal Grid Current (import) | 21A | 29A |
| GRID OUTPUT | ||
| Grid Current (export) | 12A ± 2A | 16A ± 2A |
| BATTERY | ||
| Nominal Battery Voltage | 48VDC | |
| Charging Stages | Boost, Float, Absorption | |
| INVERTER | ||
| Switching Element | MOSFET | |
| Control | 32 Bit DSP controlled | |
| Nominal Output Voltage (V) & Voltage range | 230 V ± 2% | |
| Output Supply Phase | 1 Phase 2 Wire | |
| Output waveform | Pure Sine Wave | |
| Nominal Frequency (Hz) | 50 Hz | |
| Nominal Output Current (A) | 13A | 17A |
| Output Voltage Distortion (THD) | <4% | |
| Overload at nominal output voltage | 110% for 10 minutes, 125% for 1 minute, 200% for 5 seconds | |
| Model | HYBRID TX 3.75kVA | HYBRID TX 5kVA |
|---|---|---|
| SYSTEM DATA | ||
| Transfer Time | < 20 mS | |
| Protection | Under/Over voltage protection for Input/Output, Battery & Array; Reverse polarity protection for Array & Battery; Protection for Output Overload, Short circuit and Over Temperature; MCB & Surge protection at Grid/DG Input, Battery, Wrong Wiring, Low Battery, Anti-Islanding Protection | |
| Display Parameters | Voltage/Current: Array, Battery, Grid, Output; Day kWh, Cumulative kWh, Date, Time | |
| Indications | Battery Charging/Discharging, Grid Available, Grid Select, Solar Available, Inverter On, Load On, System on Battery, Low Battery Pre-alarm, Wrong Wiring, Short Circuit Trip, Fault LED Indicator (For Overload, Low Battery, Over Temperature) | |
| Settings | Battery type, Battery voltage (Boost, Float, Absorption), Priority (SGB/SBG/Solar Only/Grid Feed), Charging Current from Grid, Zero feed/Allow feed in GFM Current Settings | |
| INTERFACE | ||
| DC Connection | MC4 Connectors | |
| Connectivity | WiFi Dongle (optional) | |
| GENERAL | ||
| Display / Indications | LCD Display (20*4) / LED Indications | |
| Dimensions (WxDxH in mm) | 300 x 504 x 515 | 350 x 635 x 589 |
| Net Weight (kg) | 50 kg | 64 kg |
| Mounting | Surface Mount | |
| Cooling | Air Cooling | |
| Enclosure Protection | IP21 | |
| Galvanic Isolation | Inbuilt Isolation Transformer | |
| Operating Temperature | 0°C - 45°C | |
