Superior Performance

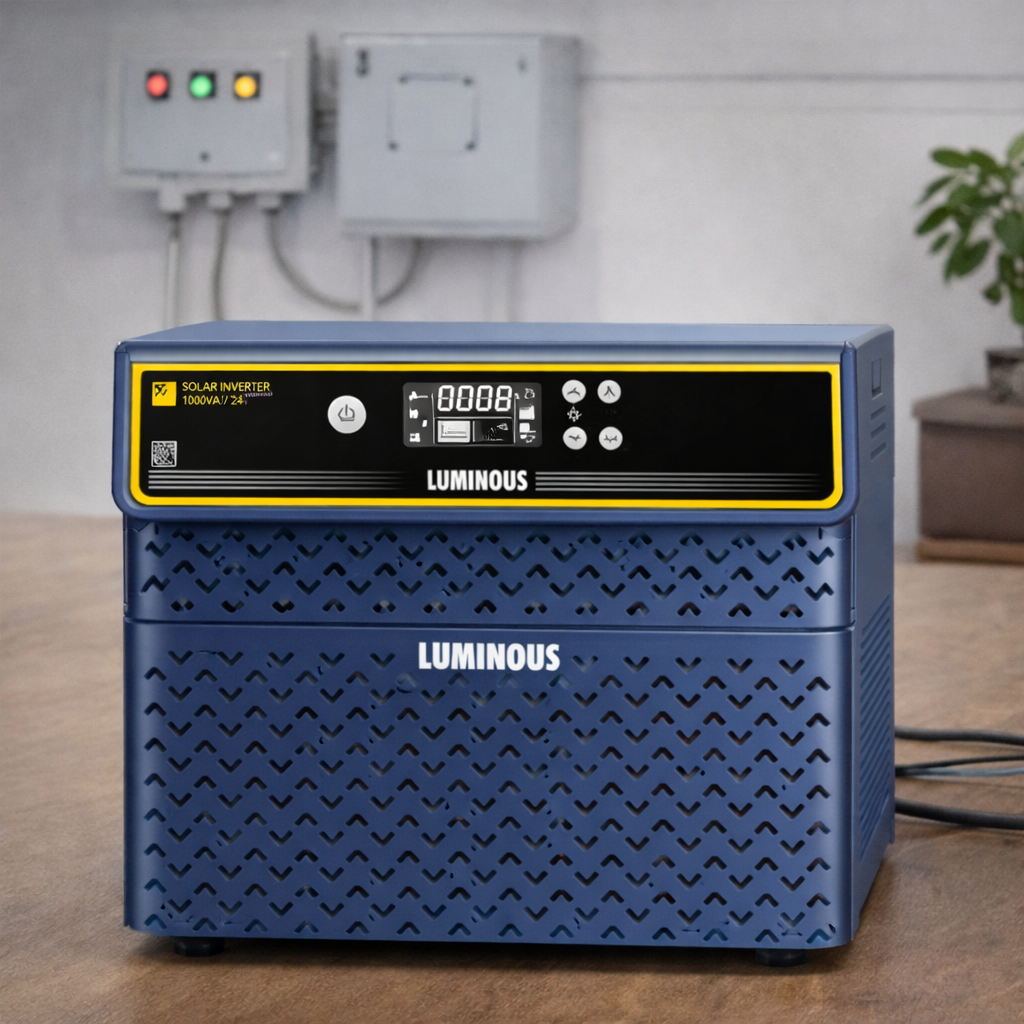

Solarverter range from Luminous allows smart management of Solar Power, Grid Supply and Battery to deliver uninterrupted power for all electrical applications. Designed for high performance against the typically tough Indian grid conditions, Solarverter is available in kVA to 5kVA.
Solar, Solar+Grid, Grid+Solar
Connect Solar Panels equivalent to Solar Inverter’s VA ratings
A user friendly display communicates important parameters like discharge time, grid vailability, selected priority setting etc.
BIS Certified BIS certified as per IS/IEC standards
Gives priority to solar in both backup and charging mode of operation thereby maximizing solar energy utilization.
| Solution | Panel Connection Combination (Series-Parallel) | Approx. Roof Top Area Required (Sq. ft.) | ||
|---|---|---|---|---|
| Solar PCU | Solar Battery | PV Panel Watt | ||
| SOLARVERTER 2KVA | 150Ah x 2 | 550Wp x 4 Nos. | 4 (P) | 120 |
| SOLARVERTER 3KVA | 150Ah x 4 | 550Wp x 6 Nos. | 2 (S) 3 (P) | 240 |
| Model Name | SOLARVERTER 2KVA | SOLARVERTER 3KVA |
|---|---|---|
| Capacity (kVA) | 2kVA | 3kVA |
| Nominal Battery Voltage (Vdc) | 24V | 48V |
| Output Waveform | Sine Wave | |
| SOLAR PHOTOVOLTAIC INPUT | ||
| Type of Charger | PWM | |
| Maximum PV power | 2000W | 3000W |
| Solar Input Voltage range (Voc) | 36V-60V | 72V-120V |
| Charge Controller Rating | 55A | 45A |
| GRID INPUT | ||
| Input Supply Phases | Single Phase | |
| Operating Voltage range | 140V-290V | |
| Nominal Grid Current (import) | 18 | 9 |
| BATTERY | ||
| Battery Charging Current from Solar | 30A | |
| Battery Charging Current from Mains | 0A, 15A, 20A | |
| Battery Charging Stages | Boost, Absorption, Float | |
| Battery Types Supported | Tubular / VRLA / Flat Plate | |
| UPS | ||
| Switching Element | MOSFET | |
| Control | 32 Bit DSP controlled | |
| Nominal Output Voltage (V) | 230V ± 5% | |
| Output Waveform | Pure Sine Wave | |
| Nominal Frequency | 50 Hz | |
| Nominal Output Current | 7A | 11A |
| Output Voltage Distortion (THD) | < 3% | |
| Overload at nominal output voltage | 110-150% for 12 Secs (5 times retry), 200% for 5 Secs | |
| SYSTEM DATA | ||
| Transfer Time | < 20 mS | |
| Protection | Reverse Polarity, Surge Protection, Over Voltage, Current Limit, Over/Under Frequency, Short Circuit, Over Temperature | |
| Display Parameters | Battery Side: Charging/Discharging Status; PV Side: Current, Power; Grid Side: Voltage, Current; Load Side: Load in % | |
| Indications | System Power On, Inverter ON (Load On Inverter), Solar Available/Solar Charging, Load On Grid/Grid Charging, Battery Under Voltage, System Trip/Fail | |
| ENVIRONMENT | ||
| IP Protection Level | IP-20 | |
| Operating Temperature | 0-45 °C | |
| Cooling | Forced Air Cooling | |
| Max. Relative Humidity @ 25°C | Up to 95% (non-condensing) | |
| Max. Altitude above sea level without de-rating | 1000 m | |
| GENERAL | ||
| Dimension (WxDxH) [mm] | 458 x 433 x 380 | 485 x 433 x 557 |
| Net Weight (Kg) | 27 kg | 35 kg |
